All-In-One Management Platform
The Dahua all-in-one management platform includes functions for CCTV surveillance, access control, entrance control, video wall, mobile surveillance, and more. It delivers an easy to operate, high performance, high efficiency, high stability, cost effective, one-stop solution.
The e-map provides a detailed overview of the location and status of each device on the system. Select devices to remotely control and monitor.
Network Cameras
Network cameras are widely used in various applications and vertical industries. Face Recognition cameras can be used in entrance & exit, smart retail, public areas, and other scenarios to improve operation efficiency. ePoE with extended reach distance is widely applicable for stadiums, parking lots, etc., to save on cabling costs.
Panoramic + PTZ WizMind Network Camera
> Panoramic network camera: Four 1/1.8”4Megapixel progressive CMOS
> Support 180-degree panoramic view
> Starlight+ technology
> Support Smart H265+/H264+ encoding
> Day/Night (ICR); 3D NR; AWB; AGC; BLC
> IR distance up to 400 m
> Smart tracking
> Tripwire
> Intrusion
> Crowd map
> Vehicle density
IPC-HFS7842-Z-5G-LED
8MP 5G Bullet WizMind Network Camera
> 8MP 1/1.8″ CMOS image sensor, low illuminance, high image definition
> Outputs max. 8MP (3840 × 2160) @25/30 fps · H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient warm light, max. illumination distance: 80 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking
> With deep learning algorithm, it supports people counting, face detection,perimeter protection, video metadata etc
> Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G SD card
> 12V DC power supply; easy for installation
> IP67 protection
> GPS/BDS
> Support 5G module (N41, N78, and N79 frequency range), and NSA and SA network
IPC-HFW5242H-ZHE-MF
2MP Vari-focal Bullet WizMind Network Camera
> 2MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @60 fps
> Max. IR distance: 70 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card
> 12V DC/PoE power supply
> ePoE, IP67, IK10 protection, Heater
> Supports junction box mount

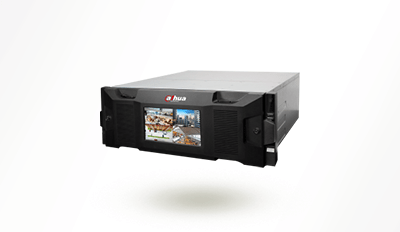

All-Channel Information Display
Dahua network recorders are equipped with various video channel capacities and physical sizes to cater to various use cases. Up to 256CH/unit with 4U size is suitable for applications with high recording requirements but without additional IP storage to on save costs, such as in schools, casino, building complexes, etc. 4CH/unit small box recorders are typically used in applications at home or small businesses like retail shops.
ePoE Technology
The Dahua ePoE IP system offers a very simple and effective solution. Dahua ePoE supports transmission of both power and video, audio, and control signals over up to 800 meters via traditional Cat5 Ethernet cable. It greatly simplifies network construction as only one cable is required to connect from the front-end to the back-end devices, which results in higher reliability and lower installation and maintenance costs for the whole system.
• Extended PoE transmission: 800m, 10Mbps, 13w or 300m, 100Mbps, 25.4w
• Automatic set up, plug & play
• Rich selection of IP Cameras, NVRs and Network Switches
• Perfect for Analog to IP Migration: IP video, audio, control & power ( 4 in 1 ) over coax cable
B. ePoE over Coaxial Cable
The Dahua ePoE IP system addresses all of these issues, making it easy to reuse existing coaxial cable within an IP video system. The Power over Coaxial Extender LR1002 connects to the Ethernet port of IP cameras or network switches on the one end and coaxial cable on the other end. Dahua ePoE supports transmission of up to 1,000 meters over RG59 coaxial cable at 10Mbit/s, and delivers PoE power to the IP camera. It’s a simple and effective plug and play solution that can significantly reduce the cost of analog to IP migration.
Dahua provides a complete solution for ePoE IP systems including IP cameras, NVRs, and network switches.
1.Extended PoE transmission: 800m @ 10Mbps & 13W or 300m @ 100Mbps & 25.5W
2.Automatic set up, plug & play
3.Perfect for analog to IP migration: IP video, audio, control & power (4 in1) over coax cable with LR1002 ePoE to BNC adaptor
HAC-HDW2241M-E2
2MP Starlight HDCVI IR Dual-lens Camera
> Starlight, 120dB true WDR, 3DNR
> One-way power supply for dual-way video outputs
> Broadcast-quality audio
> HD/SD output switchable
> Single view: max. 30fps@1080P
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 30m, Smart IR
> IP67, DC12V±30%
HAC-HDBW3200F
2MP HDCVI IR Dome Camera
> CVI/CVBS/AHD/TVI switchable
> Built-in Mic
> 2.8 mm fixed lens
> Max. IR length 20 m, Smart IR
> IP67, IK10, DC12V
